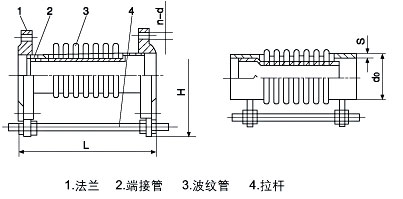

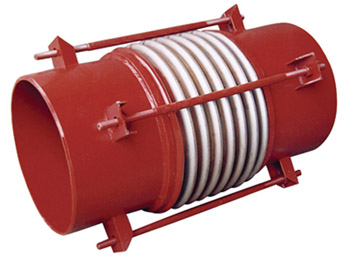

波纹管补偿器
|
|
|
通径
|
波数
|
压力等级MPa
|
波纹管有效面积cm2
|
最大外径尺寸mm
|
长度
|
|||||
|
0.25
|
0.6
|
1.0
|
1.6
|
2.5
|
法兰F
DZ/DS（mm）
|
接管J
DZ/DS.ZM(mm)
|
||||
|
轴向补偿量mm/刚度N/mm
|
||||||||||
|
50
|
8
|
25/30
|
22/51
|
20/70
|
18/70
|
15/138
|
37
|
259
|
172/276
|
282/306
|
|
16
|
50/16
|
46/26
|
41/35
|
36/35
|
31/70
|
240/342
|
347/372
|
|||
|
100
|
6
|
45/47
|
45/60
|
40/75
|
35/93
|
29/117
|
121
|
304
|
235/317
|
323/345
|
|
10
|
76/26
|
74/32
|
64/40
|
57/50
|
49/63
|
305/381
|
387/409
|
|||
|
200
|
4
|
52/49
|
46/55
|
42/68
|
38/78
|
34/111
|
479
|
442
|
280/348
|
348/372
|
|
6
|
73/31
|
65/44
|
59/52
|
53/58
|
48/78
|
340/402
|
402/426
|
|||
|
300
|
4
|
72/51
|
65/55
|
59/59
|
52/65
|
47/71
|
1105
|
562
|
366/427
|
466/467
|
|
6
|
108/32
|
97/35
|
87/37
|
79/41
|
71/45
|
464/525
|
564/565
|
|||
|
400
|
4
|
72/54
|
65/58
|
59/62
|
52/68
|
47/75
|
1611
|
700
|
412/478
|
512/518
|
|
6
|
108/36
|
97/39
|
87/43
|
79/47
|
71/52
|
522/588
|
622/628
|
|||
|
500
|
4
|
108/59
|
97/64
|
87/68
|
79/75
|
71/82
|
2445
|
835
|
431/523
|
531/554
|
|
6
|
162/34
|
145/37
|
131/39
|
118/43
|
106/48
|
531/665
|
631/742
|
|||
|
600
|
4
|
108/74
|
97/80
|
87/85
|
79/94
|
71/103
|
3534
|
980
|
478/548
|
578/588
|
|
6
|
162/42
|
145/45
|
131/39
|
118/43
|
106/60
|
658/678
|
758/781
|
|||
|
700
|
4
|
108/67
|
97/72
|
87/77
|
79/85
|
71/95
|
4717
|
1110
|
490
|
590
|
|
6
|
162/42
|
145/45
|
131/49
|
118/53
|
106/60
|
690
|
790
|
|||
|
800
|
4
|
120/88
|
108/95
|
102/102
|
94/112
|
82/123
|
5822
|
1265
|
502
|
602
|
|
6
|
183/67
|
164/72
|
156/77
|
144/85
|
125/93
|
610
|
710
|
|||
|
900
|
4
|
120/84
|
108/90
|
102/97
|
94/107
|
82/117
|
7620
|
1186
|
|
698
|
|
6
|
183/60
|
164/65
|
156/71
|
144/76
|
125/84
|
|
850
|
|||
|
1000
|
4
|
120/91
|
108/98
|
102/105
|
94/116
|
|
9043
|
1286
|
|
692
|
|
6
|
183/59
|
164/65
|
156/71
|
144/81
|
|
|
855
|
|||
|
1100
|
4
|
136/235
|
122/257
|
115/275
|
|
|
11029
|
1386
|
|
690
|
|
6
|
200/180
|
180/117
|
171/125
|
|
|
|
890
|
|||
|
1200
|
4
|
136/276
|
122/298
|
115/319
|
|
|
12688
|
1486
|
|
690
|
|
6
|
200/197
|
180/213
|
171/125
|
|
|
|
890
|
|||
|
1300
|
4
|
136/374
|
122/403
|
115/432
|
|
|
15066
|
1600
|
|
690
|
|
6
|
200/300
|
180/324
|
171/347
|
|
|
|
890
|
|||
|
1400
|
4
|
136/428
|
122/462
|
115/495
|
|
|
17194
|
1686
|
|
690
|
|
6
|
200/311
|
180/336
|
171/359
|
|
|
|
890
|
|||
|
1500
|
4
|
136/498
|
122/534
|
115/575
|
|
|
19384
|
1786
|
|
690
|
|
6
|
200/344
|
180/371
|
171/397
|
|
|
|
890
|
|||
|
1600
|
4
|
136/519
|
122/253
|
|
|
|
22363
|
1880
|
|
690
|
|
6
|
200/349
|
180/376
|
|
|
|
|
890
|
|||
|
5000
|
4
|
78/7128
|
54/8614
|
|
|
|
205486
|
5360
|
|
755
|
|
6
|
123/5432
|
86/6514
|
|
|
|
|
976
|
|||
